3D Rebar Modelling, Rebar BOQ

SteelTech provides 3D Rebar Modeling as well as Precast Structure detailing services for global and domestic contractors, Builders, Developers and Structural Engineers addressing practical situation during inception, design, construction and operations

SteelTech’s Rebar Modeling as well as Precast Structure detailing include: (CAD to BIM conversion)

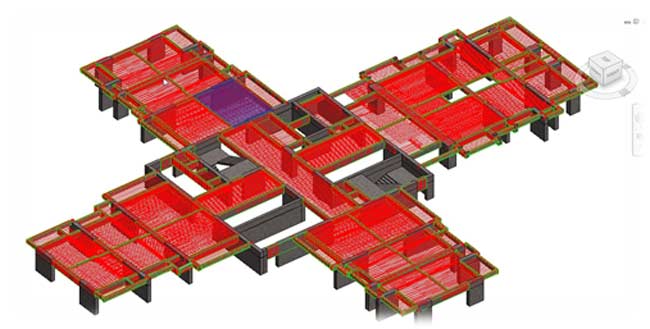

  • 3D Rebar Modelling for accurate BOQ and weights,

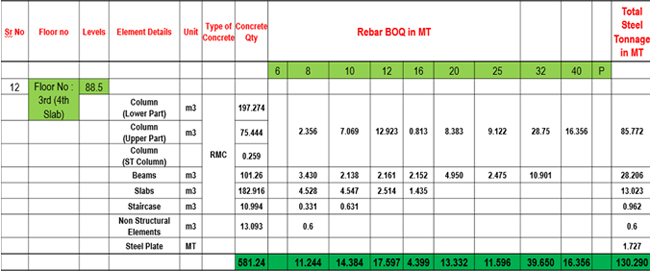

    • In excel form Bar Dia, Number, Total Length, Total Weight
      • BOQ in Customer Specific Formats | BOQ for procurement assistance
      • Formwork BOQ | Area wise quantities | Schedule wise quantities
      • Analytics and BIM-based visualization support
      • Clash reports within Rebar & Resolution Support
      • Mock-Up / Proto type modeling

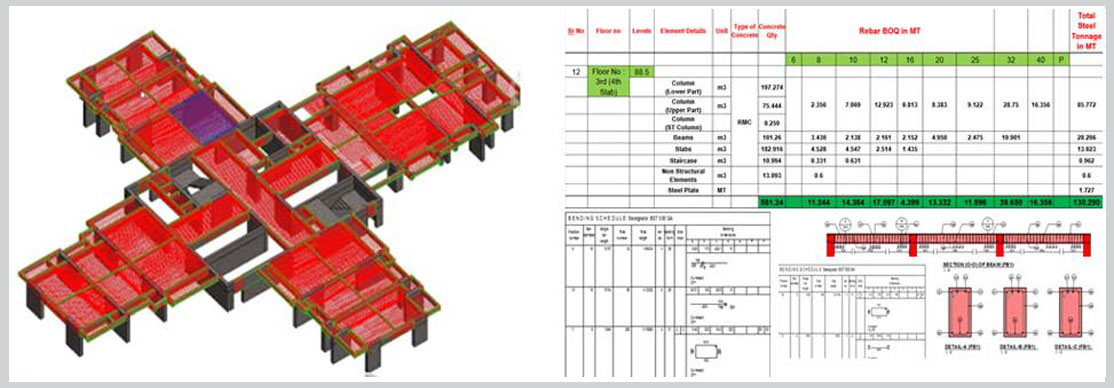

  • 2D Drawings with BBS
    • Deliver 2D RCC Detailed Drawings with BBS (Bar Bending Schedules) developed from 3D Model.
    • Coordination with Client/Consultant for getting drawings approved
    • Incorporation of all comments given by Structural Engineer / Client / Owner.

SteelTech’s experience team of 3D Rebar modellers, checkers have created Rebar models for residential towers, mixed-use projects, commercial buildings, shopping centers, hospitals, airports, hotel complexes, transport infrastructure, water and waste water treatment plants and distribution systems.

Key benefits of SteelTech’s 3D Rebar, Precast Modeling Services
  • Accurate Rebar BOQ & BBS
    • Reduce total cost and time.
  • Eliminate recalculations and improve design quality with dynamic dimensioning.
  • Easily determine reinforcement conflicts/clashes with 3D models and fly-through.

Our team has expertise in using Revit Structure, Aconcrete, Tekla Structure, ArchiCAD, Google Sketchup and we chose the BIM tool based on type of job and most supporting BIM software for specific job. SteelTech also delivers Revit 3D Models from 3D laser scan data in the form of ‘point cloud’ data.

Unique Engineering Solution for Reinforced & Precast Concrete Structure

From a single 3D Rebar model, we can generate 2D rebar placing drawings, bar bending schedules, and parts lists. Changes to the 3D model update all related drawings and documents.


Easily detect congestion problems: View modeled concrete and rebar from any angle or distance to find and correct congestion problems or design flaws before they become issues at the jobsite.


Accurate Rebar Placing on Site: Visualization with 3D Model Viewers helps place rebar perfectly and later locate it if needed. As the design team can create assembly instructions and send the information-packed model to the construction site, the staff can understand the structure better. Insight on site helps reduce errors and waste and save work.


We ensure to detail almost every Rebar so our clients can avoid rework you save time and money. With clash checking, we know for sure that off-site bent rebar fits formwork and pours on-site. As we generate all necessary drawings from the model, we are able to remove the documenting challenge that reinforced concrete detailers pose.
